Technical Analysis of Sèvres Porcelain Gilding and Hard-Paste Body Integration

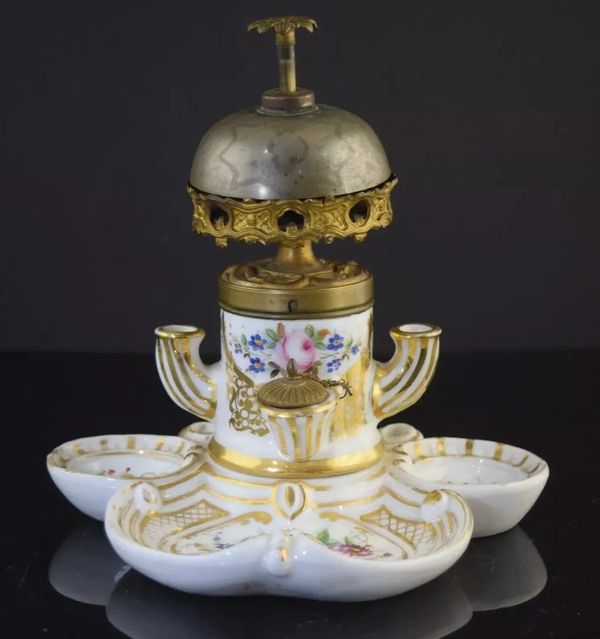

The luminous effect observed on Sèvres porcelain, particularly in gilded elements like those on the Coquille inkwell, results from a sophisticated interplay of material science, ceramic engineering, and artisanal techniques developed at the Manufacture nationale de Sèvres during the late 18th and early 19th centuries. This analysis dissects the processes involved, drawing on historical and technical details of hard-paste porcelain formulation and advanced gilding methods. These innovations allowed Sèvres to achieve seamless gold fusion, enhanced durability, and a pristine finish, enabling intricate decorations while maintaining structural integrity. The factory's advancements were driven by scientific experimentation, royal patronage, and the leadership of figures like Alexandre Brongniart (director from 1800–1847), who emphasized empirical improvements in composition and firing.
Development and Properties of Hard-Paste Porcelain at Sèvres
Hard-paste porcelain, often referred to as "true" porcelain (pâte dure), was perfected at Sèvres by the late 18th century, marking a pivotal shift from the earlier soft-paste (pâte tendre) variants used since the factory's origins at Vincennes in 1740. The breakthrough came in 1768 with the discovery of kaolin deposits at Saint-Yrieix-la-Perche near Limoges by chemists Jean-Baptiste Darnet and Vilaris, providing the essential ingredient—kaolin (a fine white clay)—previously sourced only from China or Saxony (Meissen). Kaolin, combined with feldspar (as a flux) and quartz (for strength), forms the base paste, fired at high temperatures (typically 1,300–1,400°C) to vitrify into a dense, translucent body.

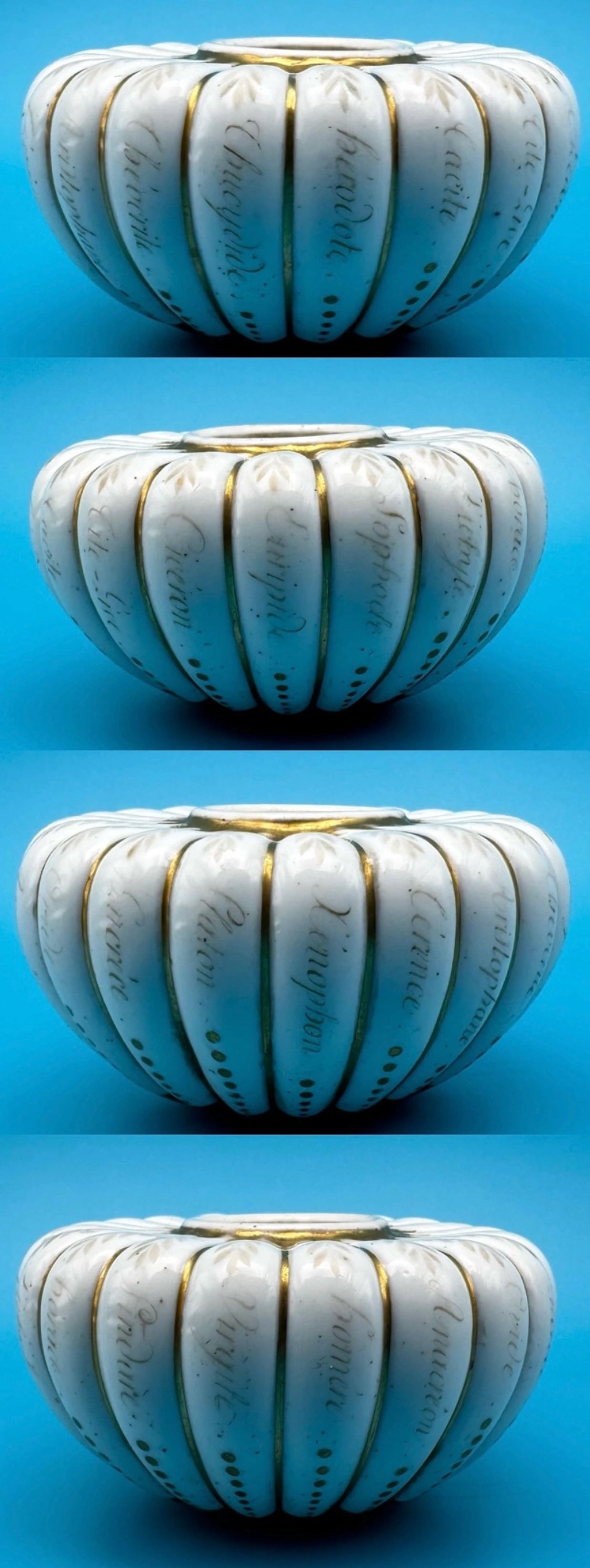

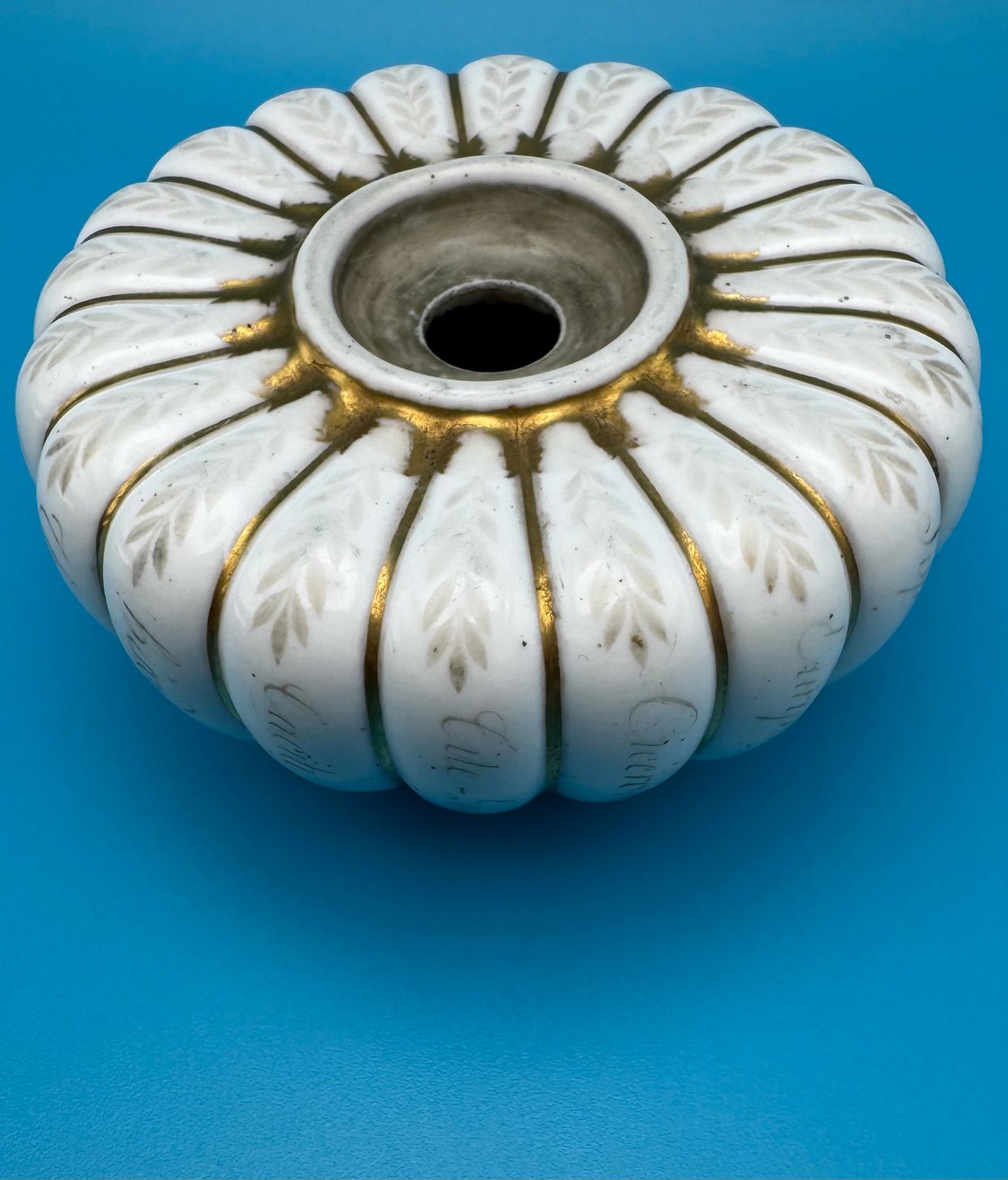

This composition addressed limitations of soft-paste porcelain, which relied on frit (a glassy mixture) and fired at lower temperatures (around 1,100–1,200°C), resulting in a more porous, brittle material prone to warping during repeated firings. By 1769, Sèvres achieved consistent hard-paste production, with full integration by 1770 under royal decree, though soft-paste continued until 1804 for specific aesthetic effects. The hard-paste's superior durability stems from its high alumina content from kaolin, which enhances thermal shock resistance and mechanical strength, allowing the body to withstand multiple high-temperature cycles without deformation. Its pristine finish—smooth, non-porous, and naturally white—requires minimal glazing for basic pieces, though a transparent lead-based glaze is often applied for added luster and protection, fired in a secondary step. This material's integrity enabled intricate detailing, such as the ribbed, melon-like forms on the Coquille inkwell, molded or thrown with precision and capable of supporting fine engravings or reliefs without cracking.
Advanced Gilding Techniques and Multiple Firings
Sèvres' gilding process, refined by the late 18th century, was the final decorative stage, applied after the porcelain body and any enamels or grounds, to ensure compatibility with the hard-paste's properties. From 1760, Sèvres held a royal privilege for gold decorations, using pure 24-carat gold to achieve unparalleled quality. The technique involved dissolving gold ingots in acid to produce a fine powder, precipitated and ground for application.
The process unfolds in multiple firings to fuse gold seamlessly:
- Initial Body Firing (Biscuit or High-Fire Stage): The shaped hard-paste porcelain is fired at 1,300–1,400°C to create a bisque (unglazed) form. This vitrifies the body, expelling volatiles and achieving density without glaze, preserving the material's strength for subsequent steps.
- Glazing and Enamel Firing (Grand Feu or Petit Feu): A transparent glaze is applied and fired at around 1,200–1,300°C (grand feu). Colored enamels (e.g., for grounds like bleu de roi) follow in lower-temperature firings (petit feu, 800–1,000°C), allowing layered decorations without remelting the body. This stepwise reduction in temperature prevents thermal stress, crucial for intricate patterns like the scripted names on the inkwell.
- Gold Application and Firing: Gold powder is mixed with a binder (e.g., lavender essential oil) and applied via brush, stencil, or transfer for precision—often in motifs like borders, scrolls, or trellis patterns. It is fired at 750–860°C, a low temperature that fuses the gold into the glaze without disturbing underlying layers. Post-firing, the gold appears dull (matte) due to oxidized surfaces and particle sintering.

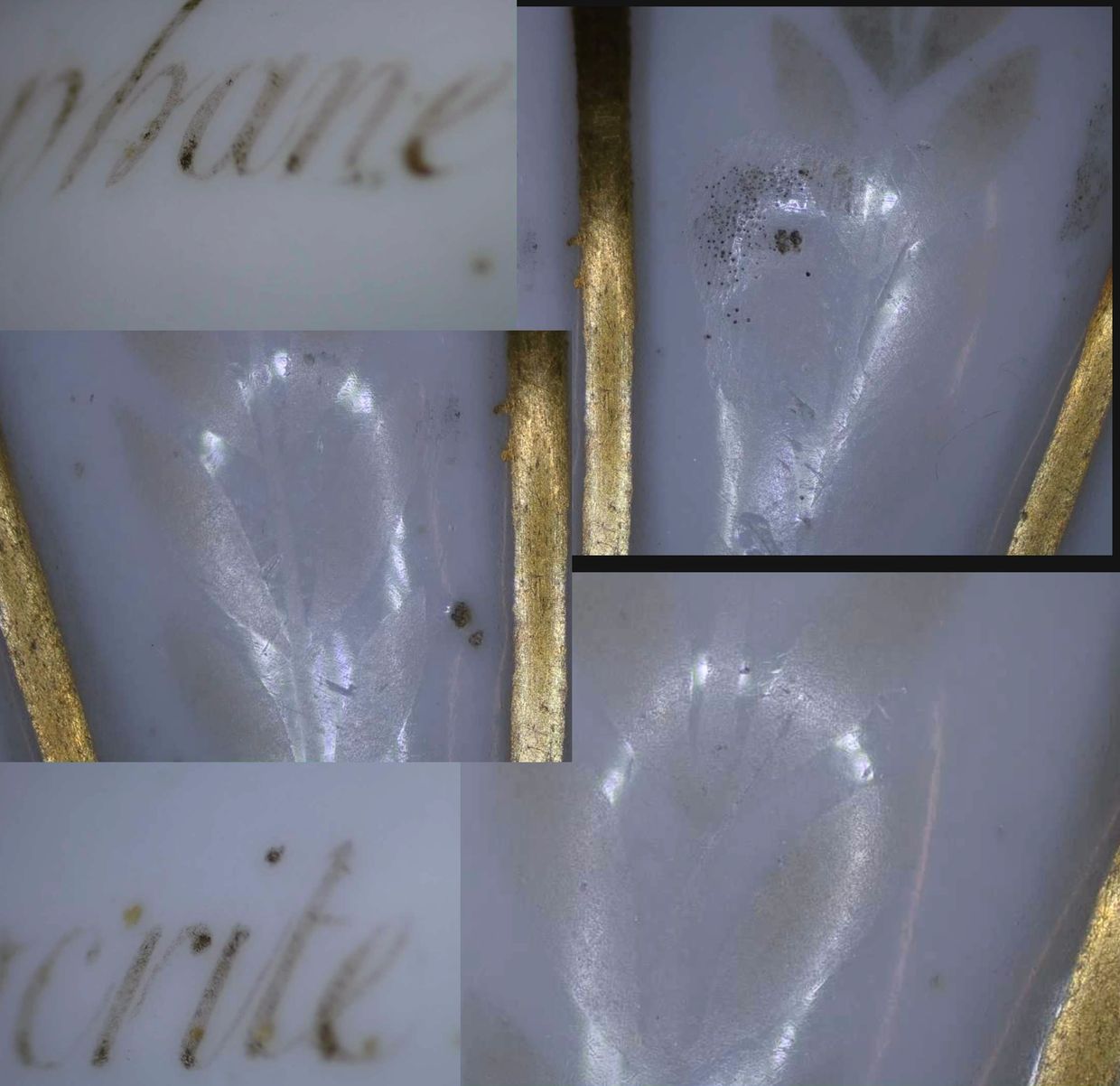

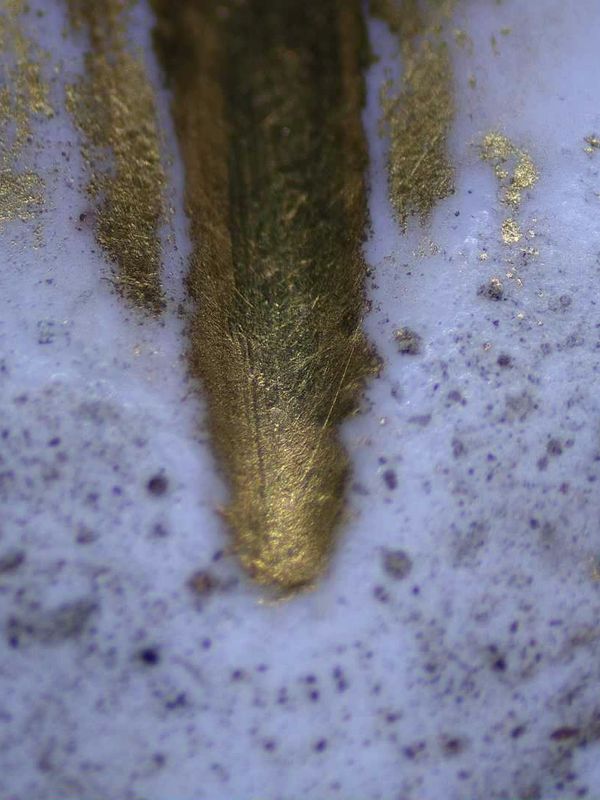

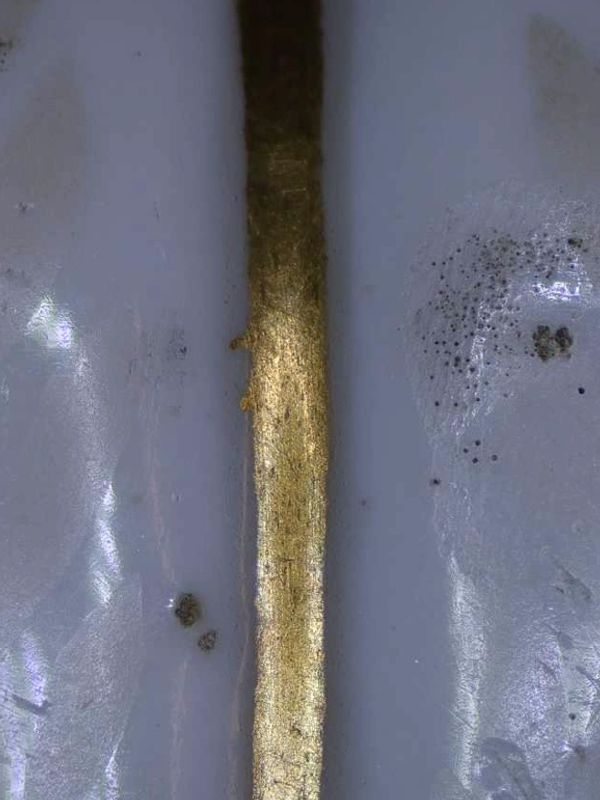

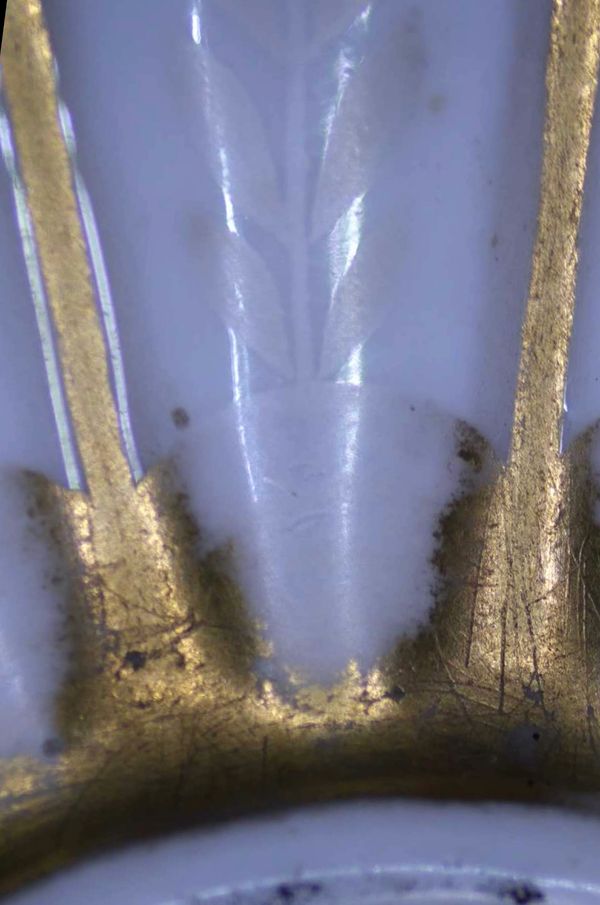

- Burnishing for Luminous Effect: The key to the luminous effect is mechanical burnishing, where agate or hematite tools crush and polish the gold particles, aligning them to reflect light uniformly and revealing a brilliant, mirror-like sheen. This process exploits gold's malleability, creating a seamless, raised or flush integration with the porcelain's surface, enhanced by the hard-paste's smooth glaze that provides a stable substrate for adhesion.
Multiple firings (typically 3–5 total) are essential: they allow sequential layering, with each step at decreasing temperatures to avoid remelting prior applications, ensuring fusion without bubbles, cracks, or separation. Wood-fired kilns, used historically at Sèvres for gradual heating/cooling, minimized defects like warping, though modern electric kilns replicate this control.
Achievement of Luminous Effect and Structural Benefits
The luminous effect arises from the optical properties of burnished gold: its high reflectivity (up to 98% for visible light) against the porcelain's translucent glaze creates a dynamic interplay, where light scatters and refracts, producing an ethereal glow. This is amplified by the hard-paste's pristine finish, which avoids absorption and enhances contrast. Durability is ensured by the material's low thermal expansion coefficient, resisting chipping or crazing during firings, while the non-porous body prevents moisture ingress, preserving integrity over centuries.

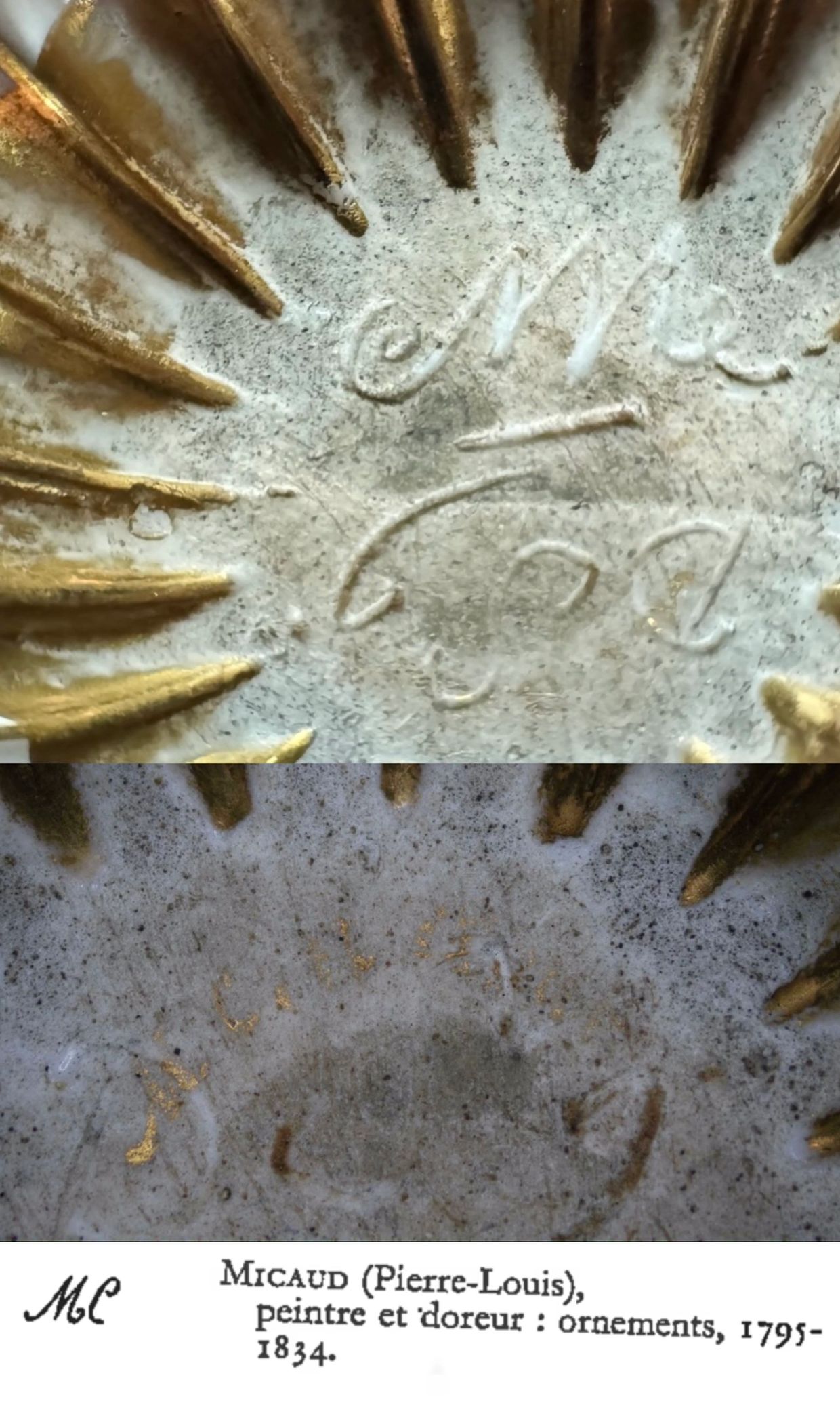

Intricate detailing—such as fine scripts, dotted borders, or leaf motifs—is facilitated by the paste's stability, allowing molding, incising, or painting without compromise. Overall, Sèvres' techniques represent a fusion of chemistry (paste formulation), thermodynamics (firing control), and metallurgy (gold application), elevating porcelain from utilitarian ware to enduring art, as seen in pieces like the Egyptian Service.
