A. F. Warren

Active Partnerships

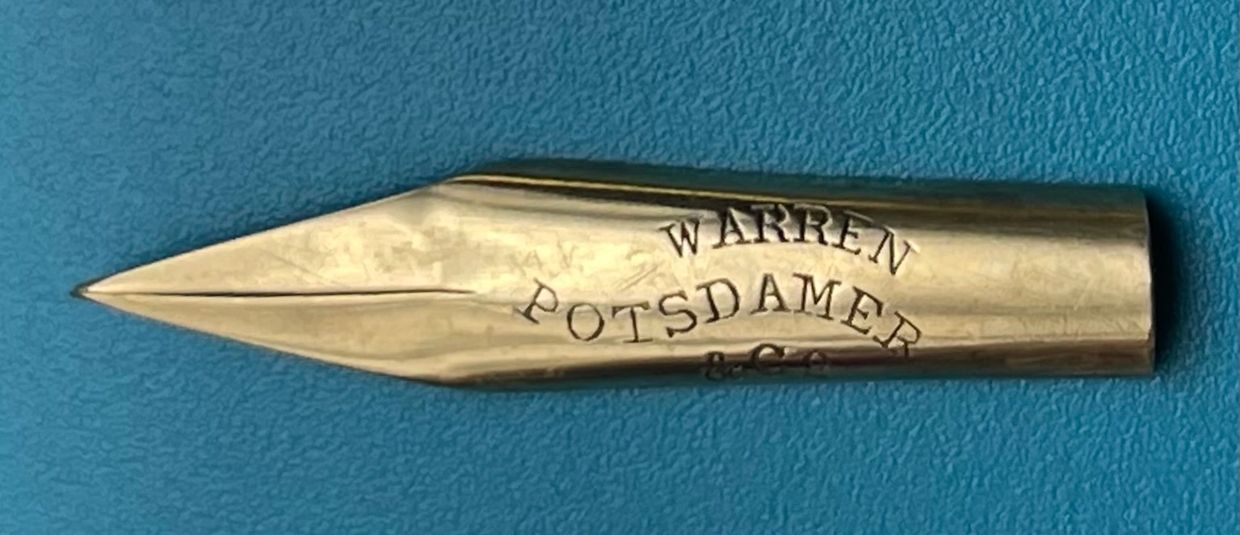

Warren, Potsdamer & Co. 1848

Almon F. Warren 1848 at 132 York, New York, NY

A.F. Warren 1853 at 4 Stanton, Brooklyn, NY

Warren, Potsdamer & Co. 1853 at 1 Stanton, Brooklyn, NY

Warren, Ludden & Sollace 1859 at 33 Maiden Lane

Dawson, Warren & Hyde 1859 at 4 Maiden Lane




Dawson, Warren & Hyde

Almon F. Dawson may not have been a partner in Dawson, Warren & Hyde. Research continues…


Exhibited is Dawson, Warren & Hyde’s

Tip Top

Larger No. F size.

Learn more about Dawson, Warren & Hyde

Warren’s Patents

1850s Fountain Pen Inventor

Almon F. Warren was one of the earliest American Fountain Pen Inventors, receiving 3 patent awards in 1856-57 for fountain pen designs.

Patent No. 14,425

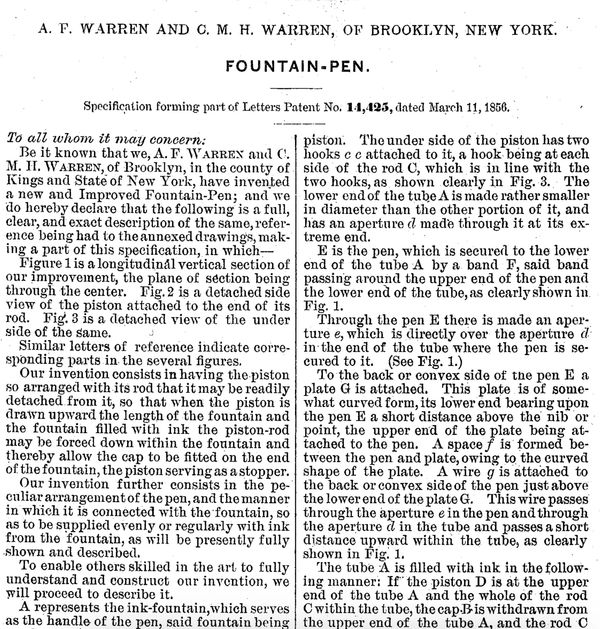

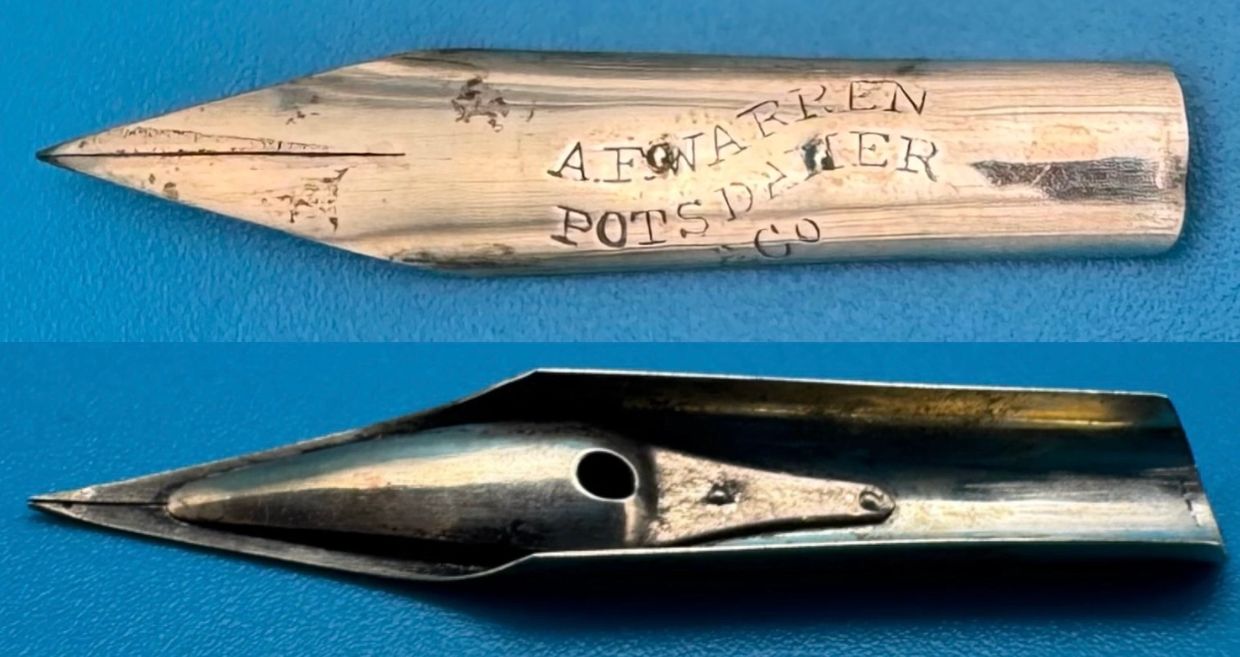

In Patent no. 14,425, awarded on 11 March 1856,  A.F. Warren‘s claim focus was on ink supply as follows::


What we do claim as new, and desire to secure by Letters Patent, is—

  1. Having the piston D and rod C arranged as shown or in an equivalent way, so that the piston may be detached from the rod when the tube or fountain is filled with ink, for the purpose specified.
  2. Attaching the pen E directly to the lower end of the tube A by the band E, and conducting the ink from the tube A to the back or convex side of the pen by the wire g.which is attached to the pen and passes through the apertures e i, as descriled.
  3. The plate G, attached to the back ot convex side of the pen E, in combination with the wire g, arranged as described, for the purpose of insuring a regular and even supply of int to the pen.

A. F. WARREN.

C. M. F. WARREN.

Patent No. 14,425

In Patent no. 14,425, awarded on 11 March 1856, and memorialized on the depicted instrument:

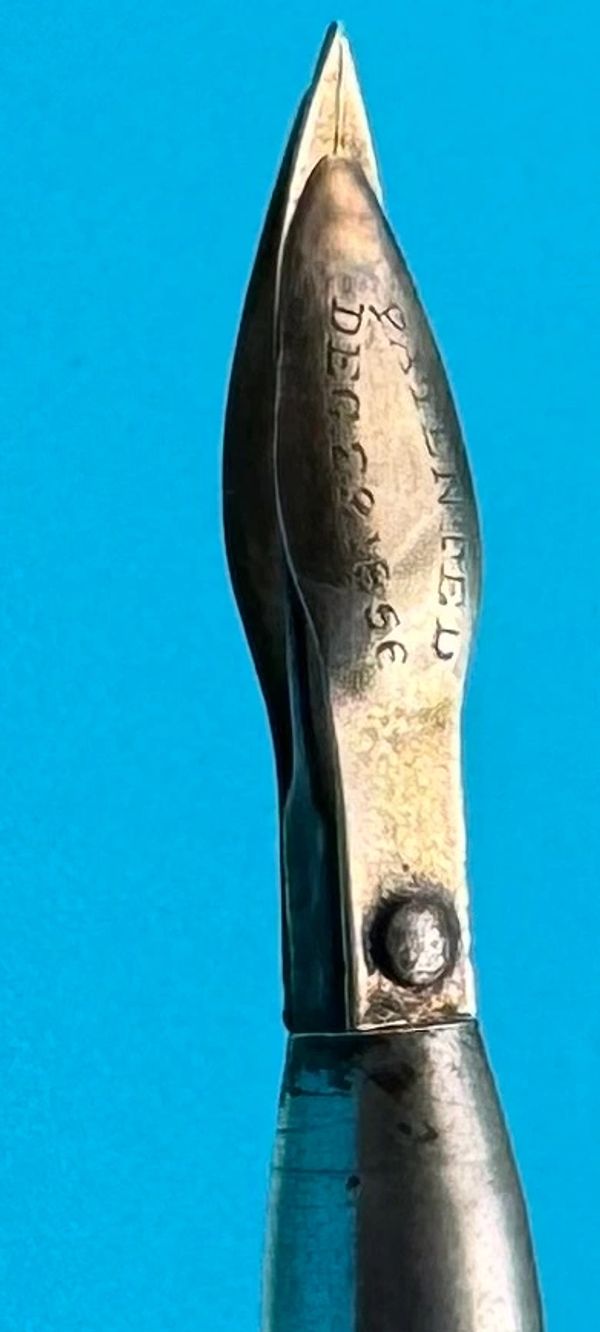

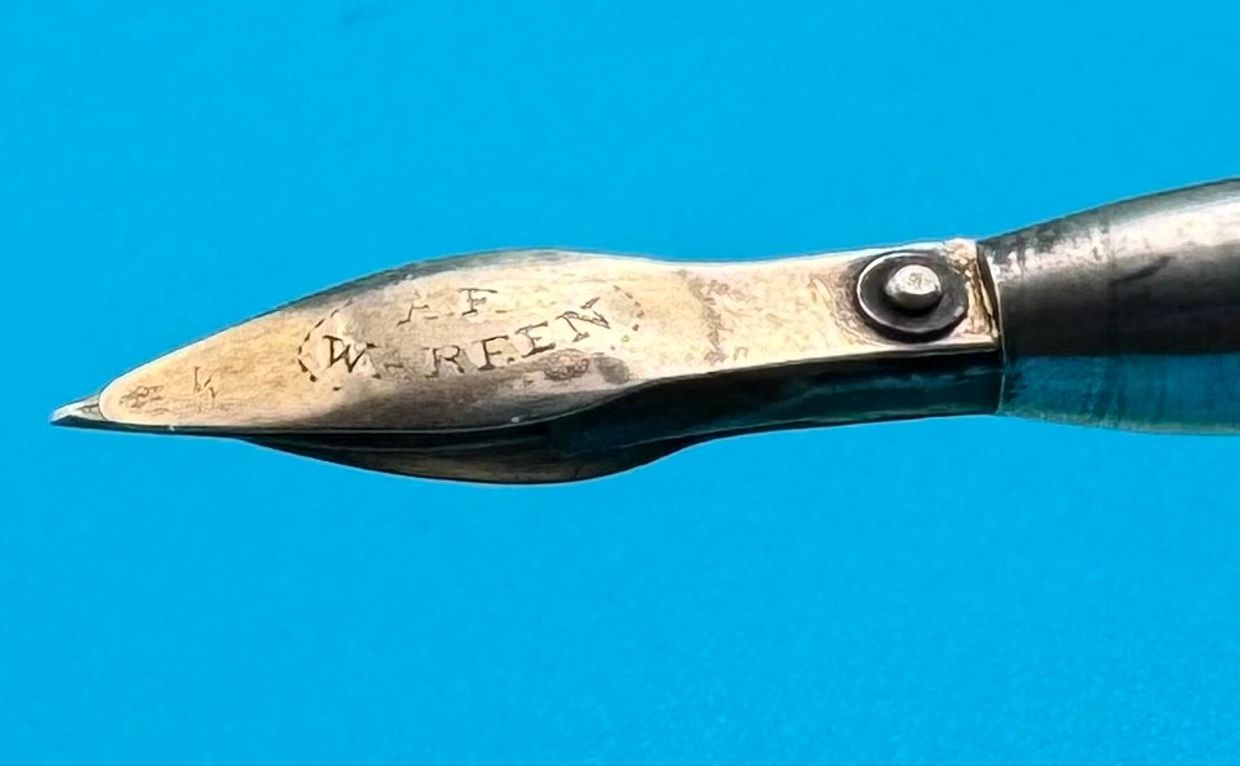

Described as a Fountain Pen,  the depicted Gold Pen nib is arranged between an upper and a  lower swiveling gold cover that serves as an ink reservoir to enable writing  without the need to dip for ink so often.



Patent No. 18, 365

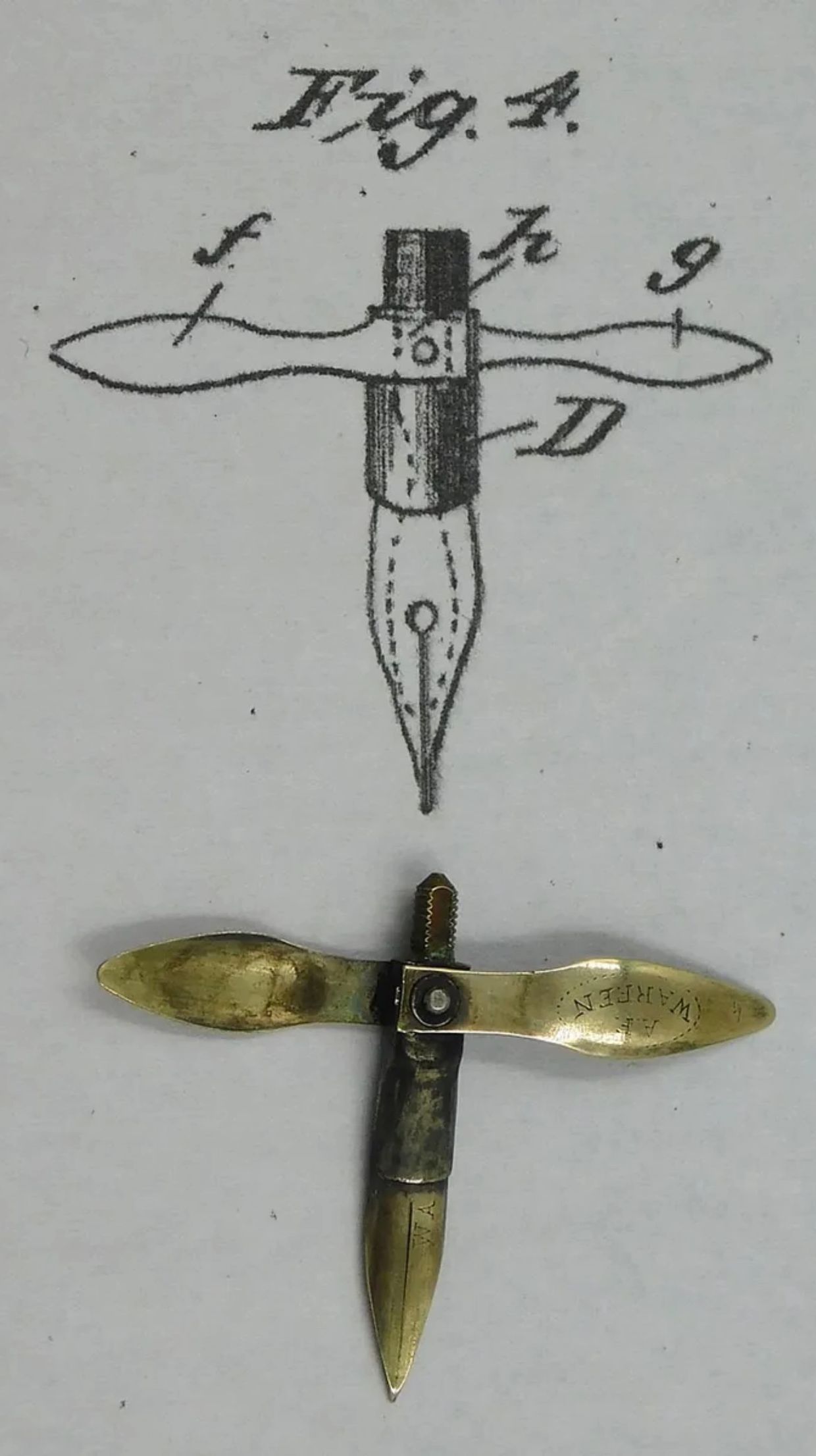

Patent no. 18,365 depicts a graphic matching a Gold Pen nib crafted similar to the example superimposed.



Patent No. 16,299

In Patent no. 16,299, awarded on 23 December 1856, Mr. Warren focused his claim language as follows:


Having thus described my invention, what I claim as new, and desire to secure by Letters Patent, is--

  1. Attaching the pen-holder to the sliding tube B by means of the rod C, substantially as shown, so that the pen may be drawn within and shoved out from the cylinder or ink-reser-voir A, as herein described.
  2. Constructing the pen-holder of the two ptales be and plug D, substantially as herein described, for the purpose set forth.

A. F. WARREN.

Patent No. 18,365

In Patent no. 18,365, awarded on 6 October 1857, Mr. Warren opined as follows in his claim language:


Having thus described my invention, what 1 do claim as new and desire to secure by betters L'atent, is-

  1. The supplementary valve or cut-off, d, used in connection with the valve, 6, both valves being within the tube or fountain A and placea on the same rod, C, substantially as and for the purpose set forth.
  2. 1 do not claim, broadly, the plates, 7, I, for they have been previously used, but I do claim attaching said plates, t, g, to the holder D, by means of the pivot, h, for the purpose specified.

A. F. WARREN.

Bagley 3-Section 1846 Patent Pen-Holder

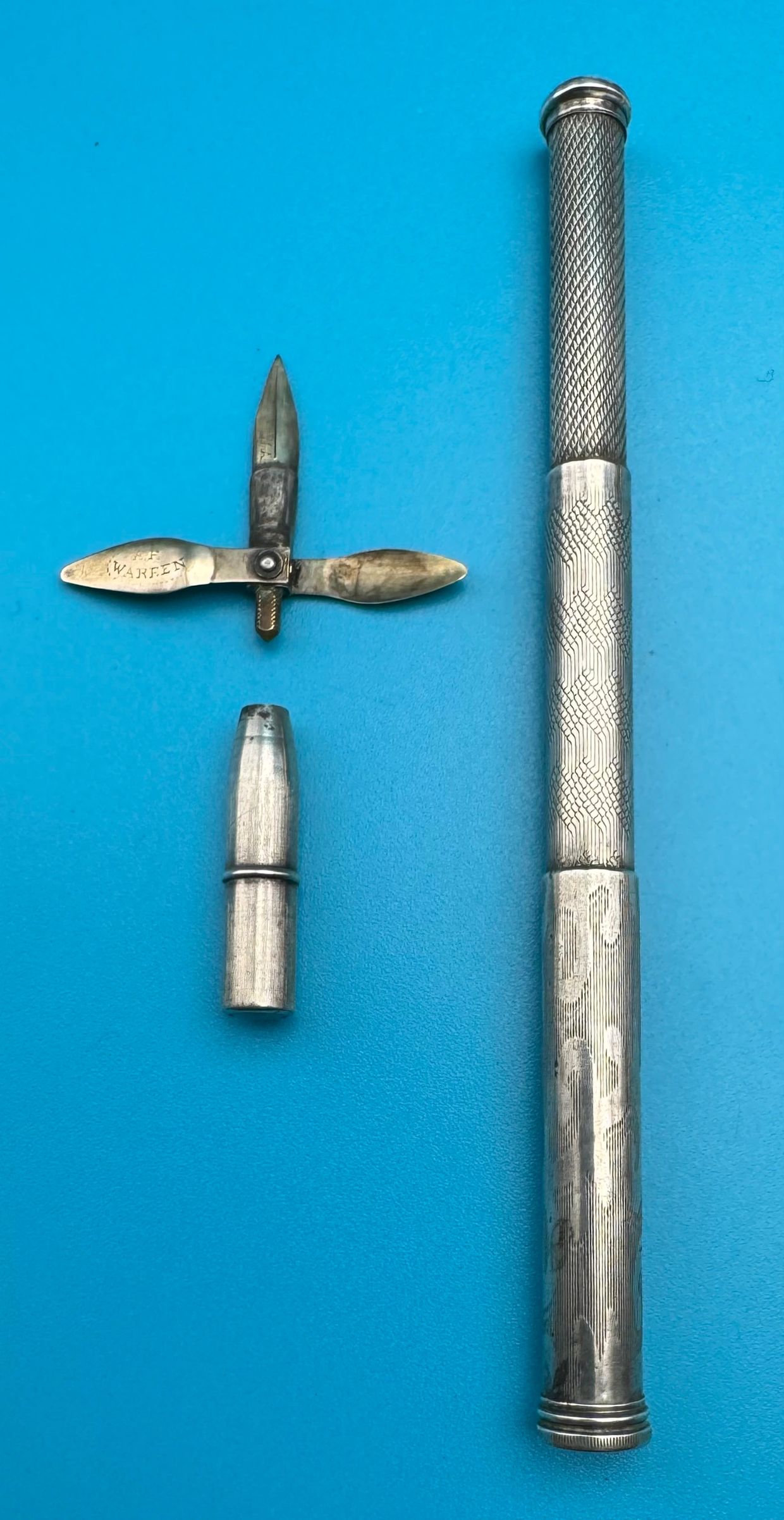

A.F. Warren patent ink reservoir Gold Pen nib inserted into a modified nib holder that is fitted to a Bagley patent 3-section pen holder, described as a “double extention silver case” in advertising.

Bagley 3-Section 1846 Patent Pen-Holder

A.F. Warren patent ink reservoir Gold Pen nib inserted into a modified nib holder that is fitted to a Bagley patent 3-section pen holder.


The Bagley factory supplied the pen holder, and may have produced the Gold Pen nib holder mechanism on contract, given the extensive capabilities at the factory. This would have reduced time to market and overall production costs for small production quantities.

Warren’s Patent Reservoir Fountain Pen

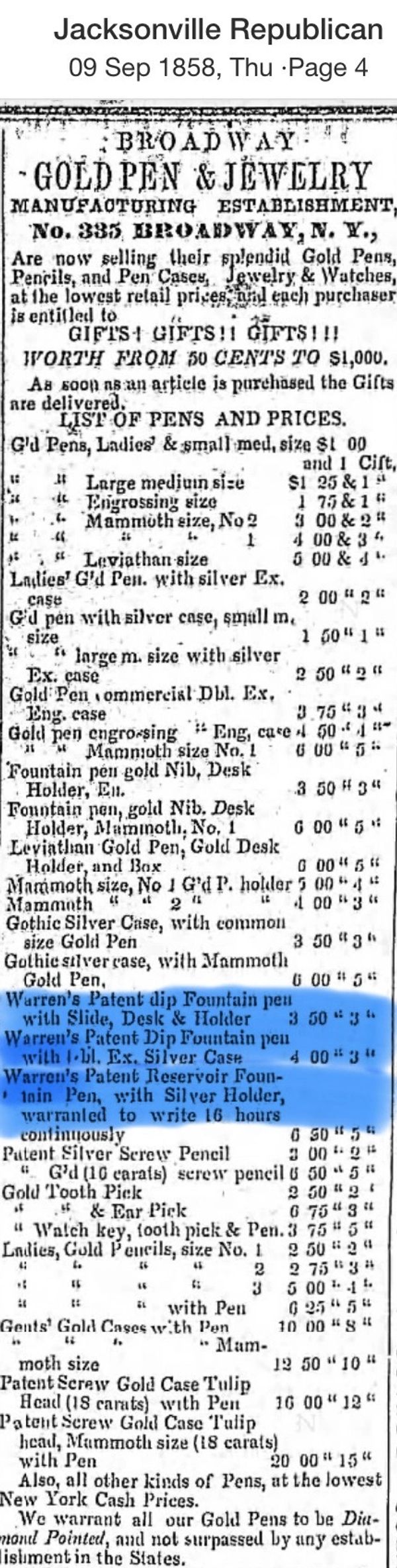

A.F. Warren  sold an unknown number of the Fountain Pen and Reservoir Dip Pen versions of his invention.

Warren’s Patent Reservoir Fountain Pen

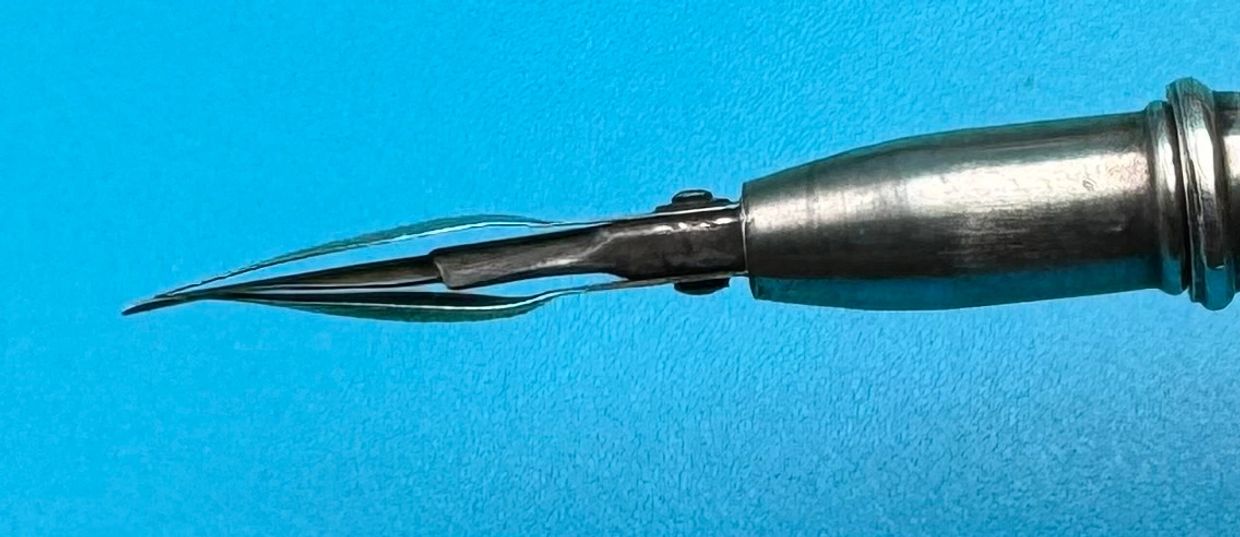

A side-view perspective exhibiting how the swiveling plates enclose the Gold Pen nib, offering the opportunity to gather ink in a “reservoir”  and continuously supply ink to write a paragraph or perhaps more.
